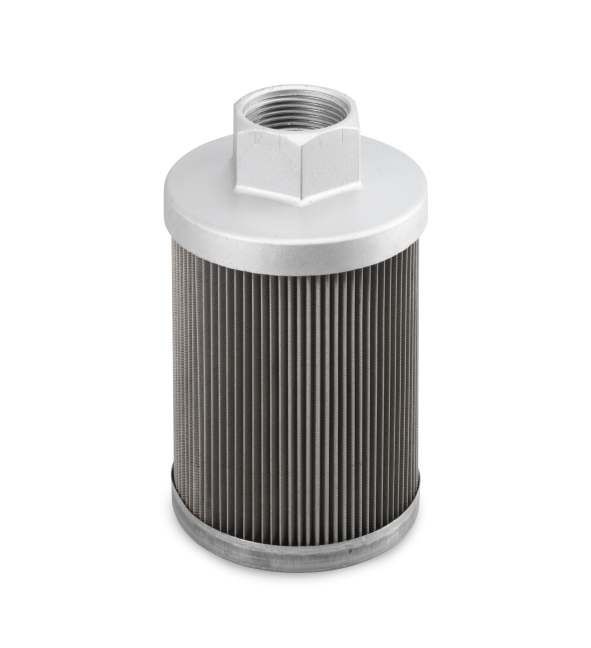

Suction strainer' Series FA; in-tank mounting; max flow 300 l/min; stainless steel wire mesh from 60 a 250 µm; port size from ¼" up to 3" BSP.
|
|
Low pressure "spin-on" filters Series SOE; in-line mounting on suction or return line; max flow 350 l/1';max pressure 12 bar; microfibre, cellulose and INOX elements from 3 up to 125 µm; port size from ¾" up to 1"1/4 BSP.
|
|
Low pressure filter' Series RF; on-tank semi-immersed mounting; max flow 500 l/min; max pressure 16 bar; micron ratings from 3 up to 200 µm; port size from ¾" up to 2" BSP.
|
|
Low pressure filter' Series RFB; on-tank semi-immersed mounting; max flow 185 l/min; max pressure 16 bar; micron ratings from 3 up to 200 µm; port size from ¾" up to 1" BSP.
|
|
Low pressure filter' Series RTF; on-tank semi-immersed mounting; max flow 380 l/min; max pressure 10 bar; micron ratings from 3 up to 25 µm; port size from ½" up to 1"1/2 BSP, NPT, SAE.
|
|
Low pressure filter' Series RF-MC; on-tank semi-immersed mounting; max flow 1.500 l/min; max pressure 10 bar; micron ratings from 6 up to 90 µm; port size from 1"1/4 BSP up to 3" SAE.
|
|
Medium pressure filter' Series SMPF; in line mounting; max flow 90 l/min; max pressure 110 bar; micron ratings from 3 up to 60 µm; port size ½" BSP & ¾"x16 SAE.
|
|
Medium pressure filter' Series SFA; in line mounting; max flow 240 l/min; max pressure 160 bar; micron ratings from 3 up to 60 µm; threaded ports BSP NPT, SAE and SAE flanges.
|
|
High pressure filter' Series MF-MQ; in line mounting; max flow 480 l/min; max pressure 280 bar; micron ratings from 3 up to 25 µm; port size from 1/2" up to 1"1/2 BSP e NPT.
|
|
High pressure filter' Series SF; in line mounting; max flow 1.300 l/min; max pressure 420 bar; micron ratings from 3 up to 200 µm; threaded ports BSP NPT, SAE and SAE flanges.
|
|
Air breather / dessicant filter Series SDB; on tank mounting; air flow from 700 up to 1.500 l/min; micron ratings 3 µm; water holding capacity from 86 up to 576 gr; port size from 32/4" up to 1"1/4 BSP.
|
|
Mobile flushing and decontamination system Series SMFS-U; veratile unit available in standard and customized version; working at high and low pressure; off-line connection to the main system.
|
|
By-pass "off line" filter' Series BU; available in 5 sizes; flow from 1 up to 5 l/min; max pressure 345 bar; micron rating 0,1 µm absolute; dirt holding capacity up to 1.130 gr; SAE threaded ports.
|
|

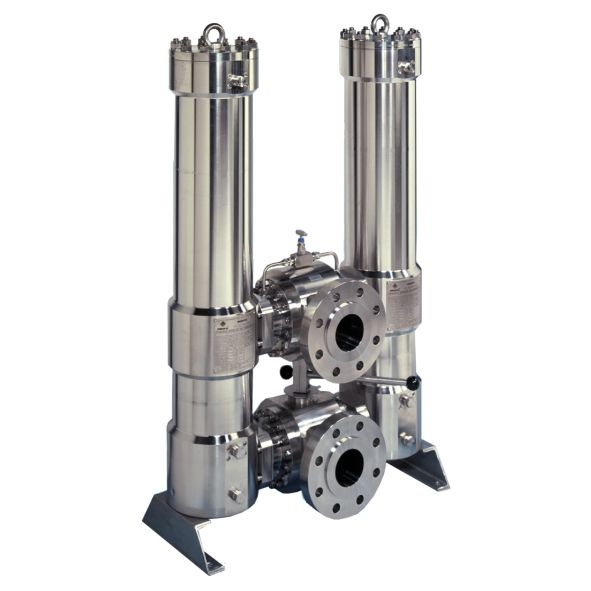

Industrial filters & ball valves; simplex and duplex design configuration; hydraulics and lubricating fluids, water & gases; flow up to 27.000 l/min; max pressure 420 bar; threaded or falnged conections up to 14" size.
|
